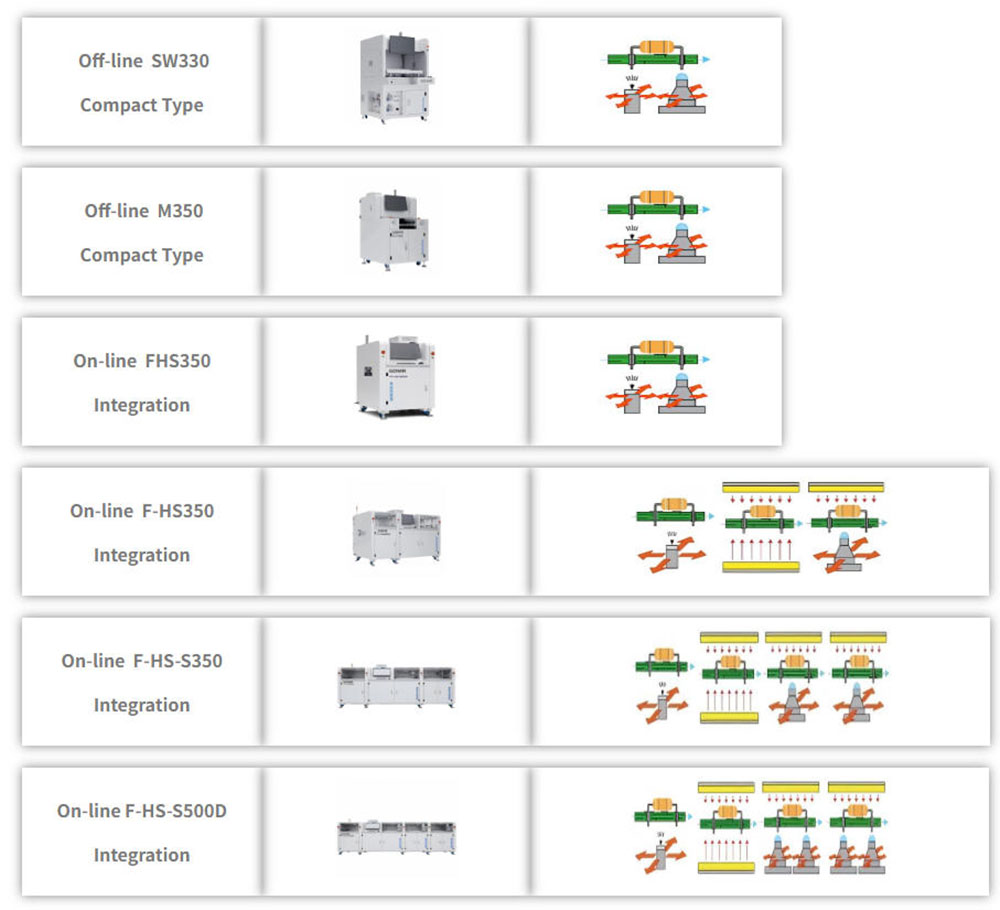

❙ Introduction of Selective Wave Soldering

Features:

1.PCBplate fixed, spray and soldering platform moving;

2.High solderingquality, greatly improve the pass rate of soldering;

3.Modular designof SMEMA online transportation, support customers for flexible line formation;

4.FullPC control. All parameters can set in PC and saved to PCB menu, like moving path, solder temperature, flux type, solder type, N2 temperature etc, best trace-ability and easy to get repeat soldering quality;

5.Auto waveheight calibration function, to check &calibrate wave’s height after every certain PCB, so to keep a very good stability of wave;

6.CCDMark positioning function, to check PCB’s mark point after every certain PCB;

7.Self designmotion table with castaluminum, lighter weight with quick motion speed;

8.Panasonic servomotor & driver provide stable, with ball screw & linear guild rail, less noise, stable movement;

9.With dustproofplate above motion table, so to avoid flux or solder drop to damage ball screw;

10The jet valve originatedinGermany is selected with small flux dot, please note flux solid content should be less than 10%;

11.Fluxis stocked by pressure tank, make sure pressure stable without influenced of amount of flux;

12.Using our self-developed, highly stable and durable electromagnetic pumps, we are the only supplier that dares to offer a 5-year warranty on our electromagnetic pumps;

13.Solderpotis made of Ti, not leakage. With cast iron heater outside, robust & quick heat up;

14.N2 onlineheating system, to wet the soldering perfectly and reduce the solder dross;

15.With stainless steelroller for conveyor,not wearable with long term usage.

❙ Specification of Selective Wave Soldering
